LM2695 DC-DC Converter Work For Long Time For Activity




Assembled Product Weight
1 lb

Assembled Product Dimensions (L x W x H)
3.54 x 2.76 x 0.39 Inches


Category: Tags: ,


Product details

DC-DC Converter, DC-DCConverter Work for Long Time for Activity

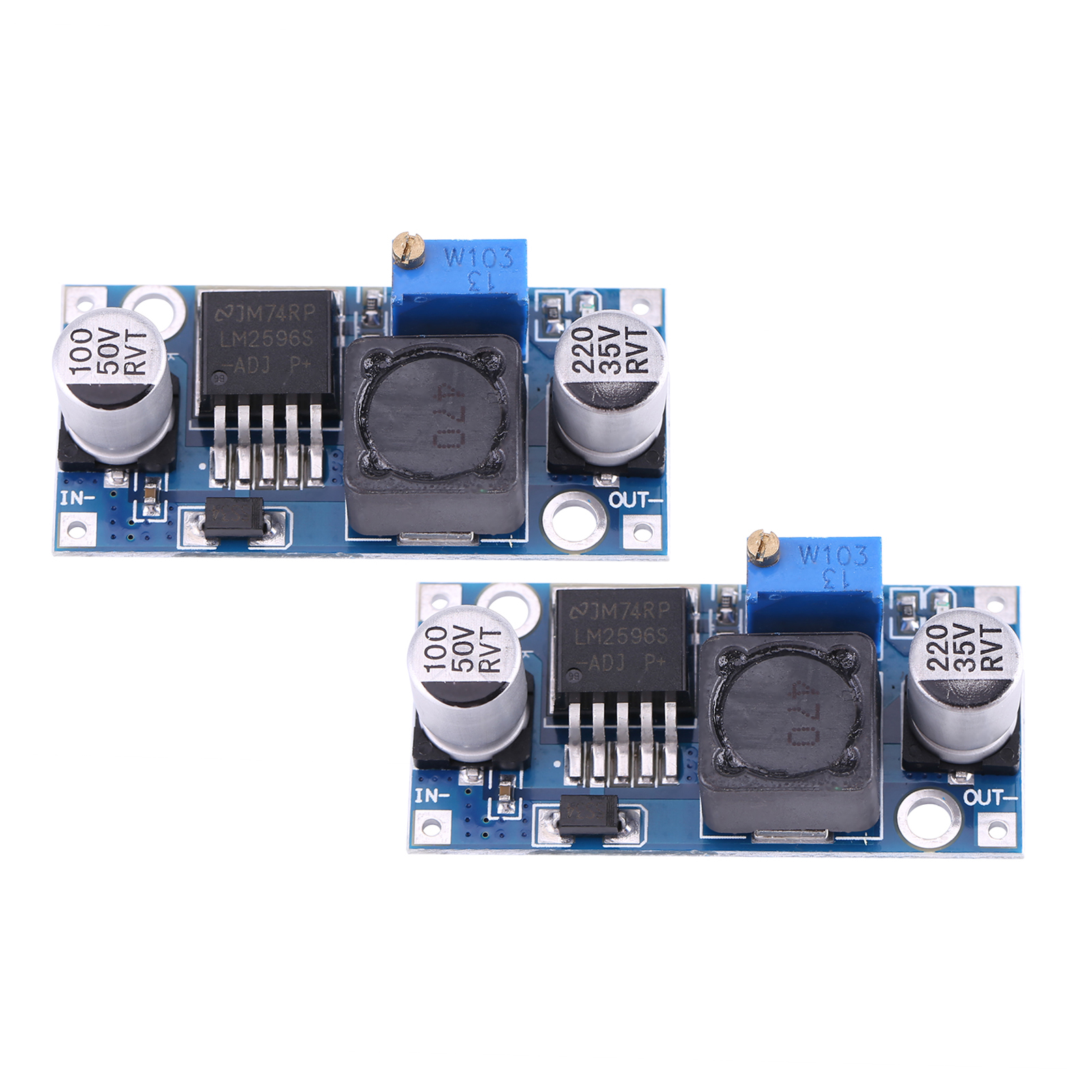

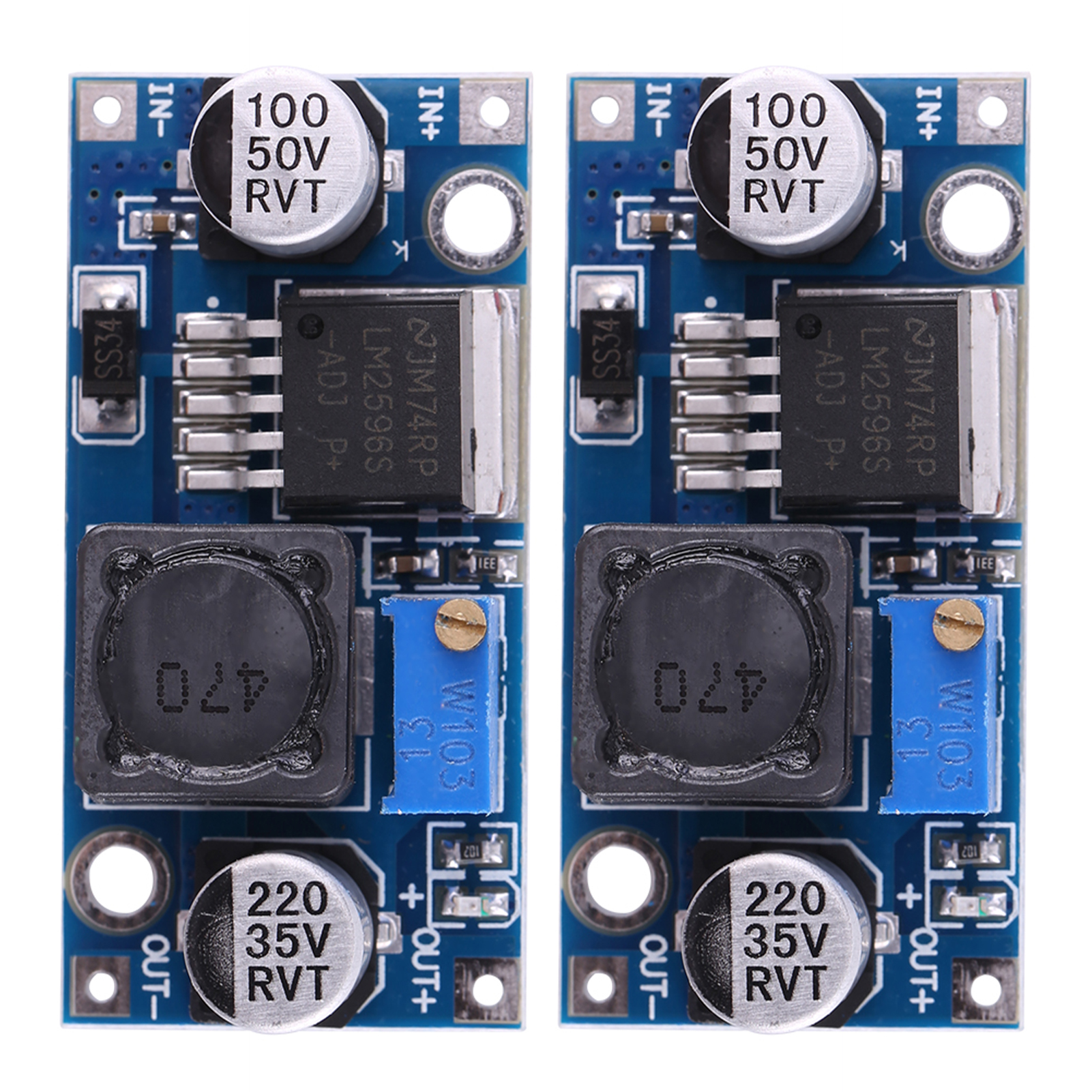

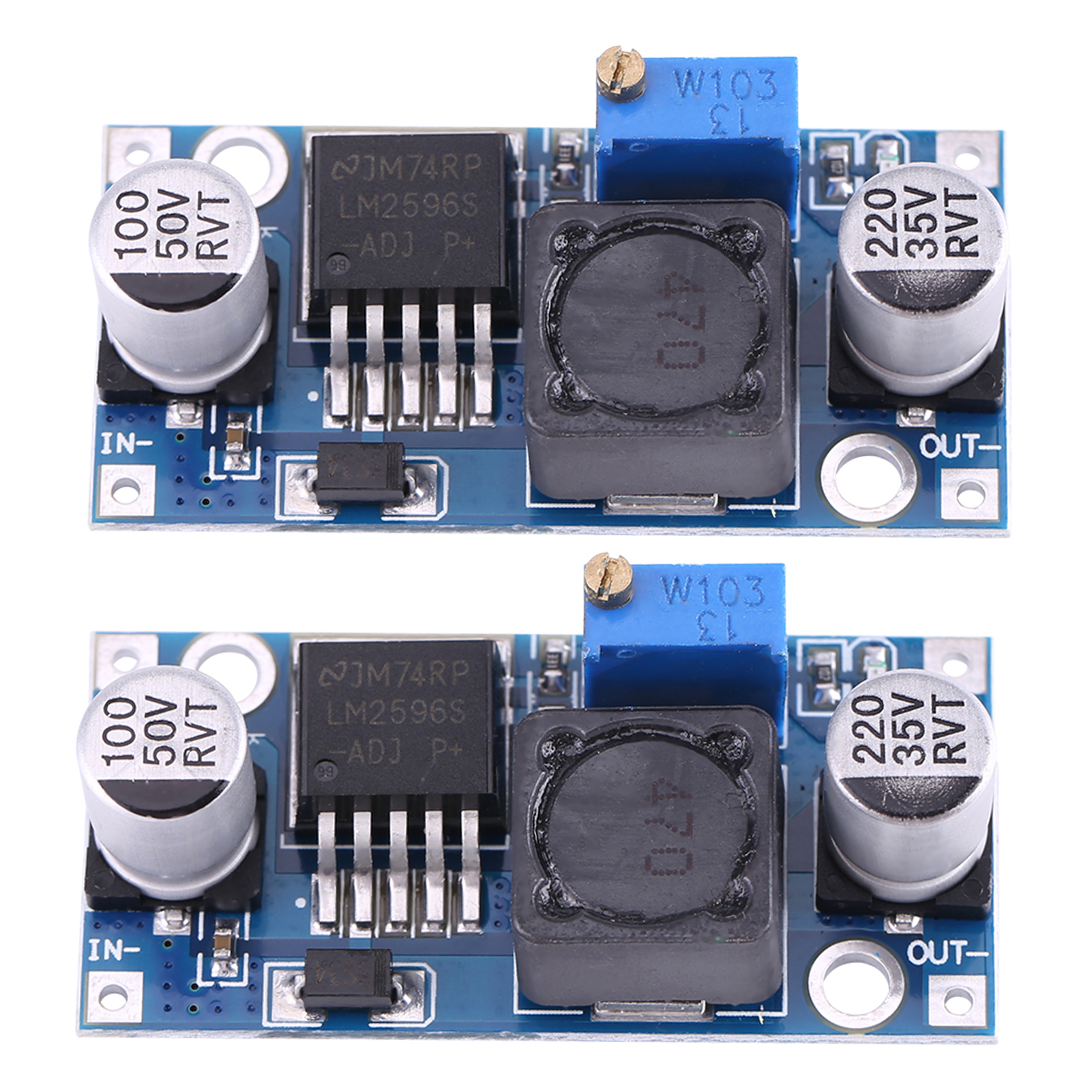

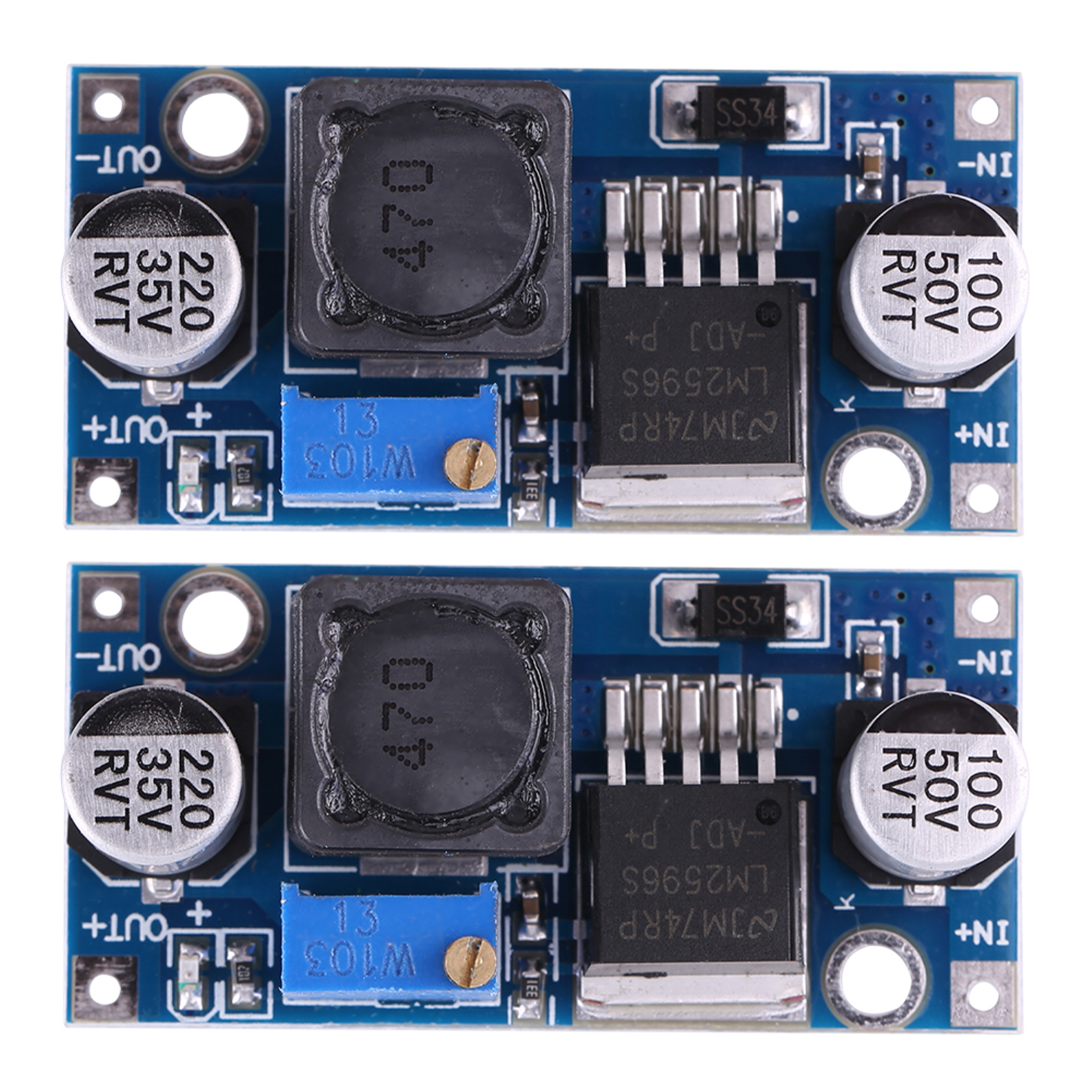

Features: This is a DC-DC step down converter module that convert 3.2V~35V to 1.25V~35V, maximum current is 3A. Buck converter module is used for voltage step-down so please make sure that input voltage is at least 1.5V higher than output voltage. The buck module can be remarkably efficient (maximum 92%), making it useful for voltage step-down. Current of less than 2.5A is suggested for long time working; enhance heat dissipation if more than 2A(output >10W).
Widely used for low voltage system power supply 6V, 12V, 14V, 24V battery charging and regulated power supply.

Specifications: Input Voltage: 3.2V~35V
Output Voltage: 1.25V~35V
Output Current: 3A (Max.)
Efficiency: 92% (Max.)
Output Ripple: <30mV
Switch Frequency: 65KHz
Operating Temperature: -45 degrees Celsius ~ +85 degrees Celsius
Size: 43x21x14mm/1.69×0.82×0.55″
Package Includes: 2 x Buck Modules

Additional information

Weight 0.5 kg
Dimensions 10 × 10 × 8 cm
