A10N-8800E Mini ITX Motherboard A10 8800P CPU Game Graphic HDMI SSD HDD DDR4 M2 Ver 6.1

Home/Motherboard/A10N-8800E Mini ITX Motherboard A10 8800P CPU Game Graphic HDMI SSD HDD DDR4 M2 Ver 6.1

A10N-8800E Mini ITX Motherboard A10 8800P CPU Game Graphic HDMI SSD HDD DDR4 M2 Ver 6.1

$120.00 $99.00

Item specifics
Condition: New: A brand-new, unused, unopened, undamaged item in its original packaging

Brand: BIOSTAR
Input/Output Ports: Ethernet (RJ-45), HDMI, SATA II, SATA III, USB 2.0, USB 3.0 Form Factor: Mini-ITX
Model: A10-8800N
Socket Type: BGA
mpn: Does Not Apply
Compatible CPU Brand: AMD
Features: On-Board Audio, On-Board Video Chipset Number of Memory Slots: 2
Memory Type: DDR4 SDRAM Expansion Slots: PCI Express 2.0 x16, PCI Express 3.0 x16

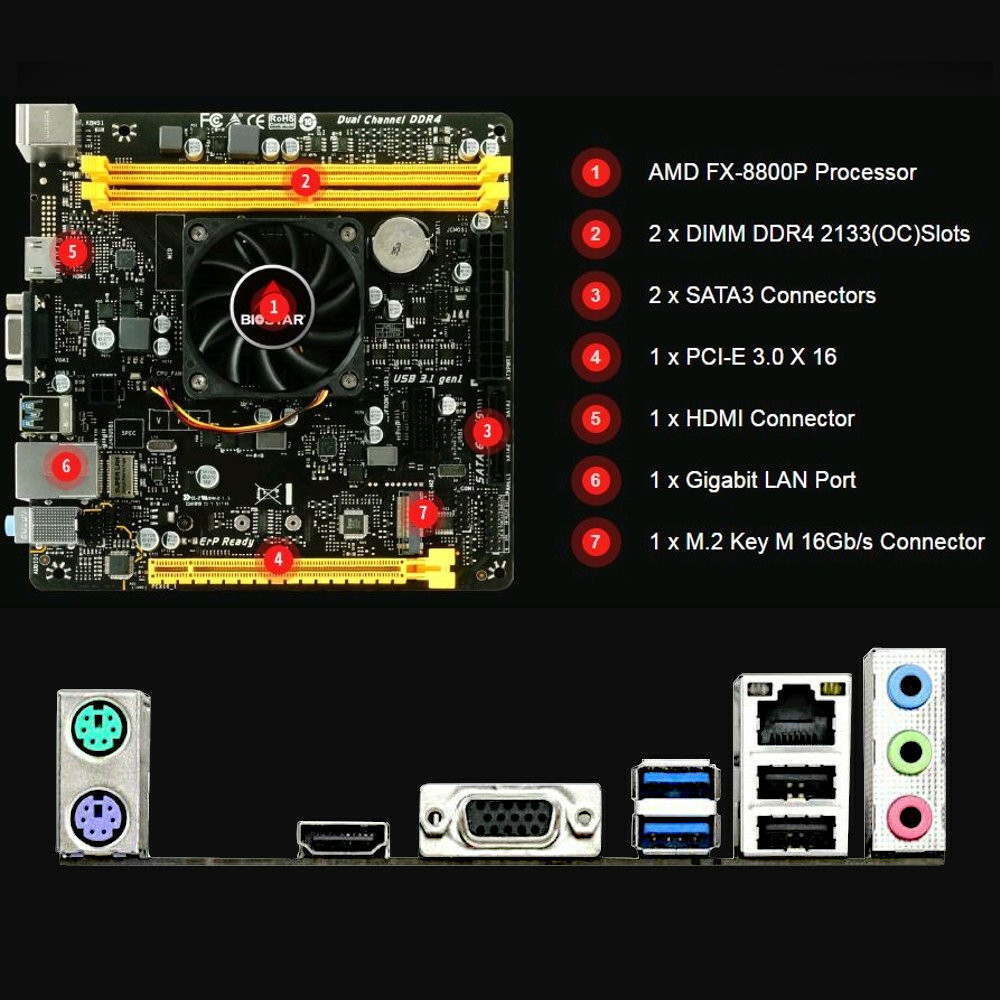

Description



Chipset AMD Carrizo
CPU SUPPORT AMD FX-8800P Processor
(Quad core 2.1GHz up to 3.4GHz)
MEMORY Support Dual Channel DDR4 2133(OC) MHz
2 x DDR4 DIMM Memory Slot
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR4 module
※Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO AMD Radeon™ R7 Graphics
Supports HDCP
STORAGE 2 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) 16Gb/s Connector: Supports PCI-E (16Gb/s)& SATA SSD
LAN Realtek RTL8111H - 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
CODEC Realtek ALC887 8-Channel HD Audio
Support HD Audio
USB 4 x USB 3.1 Gen1 Port(2 on rear I/Os and 2 via internal headers)
4 x USB 2.0 Port(2 on rear I/Os and 2 via internal headers)
EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot

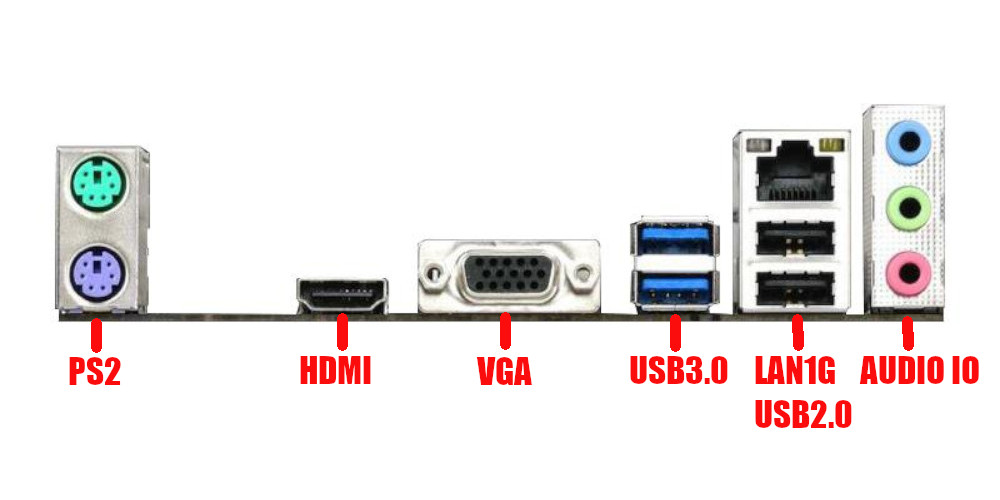

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.1 Gen1 Port
2 x USB 2.0 Port
1 x HDMI Connector ,resolution up to 4096 x [email protected], compliant with HDMI 1.4
1 x VGA Port ,resolution up to 1920 x 1200 @60Hz
1 x LAN Port
3 x Audio Jacks
INTERNAL I/O 1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports)
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
2 x SATA III 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING CPU / System1 Temperature Monitoring
CPU / System Fan Monitoring
System Fan Monitoring
Smart / Manual CPU(DC FAN) Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )
OS SUPPORT Support Windows 7 x86/x64, Windows 8.1 x64, Windows 10 x64
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports BIOS-Flasher



Additional information

Weight 0.85 kg
Dimensions 24 × 24 × 12 cm
